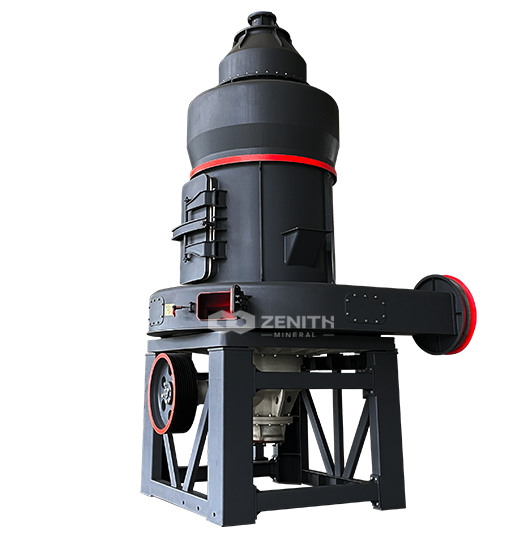

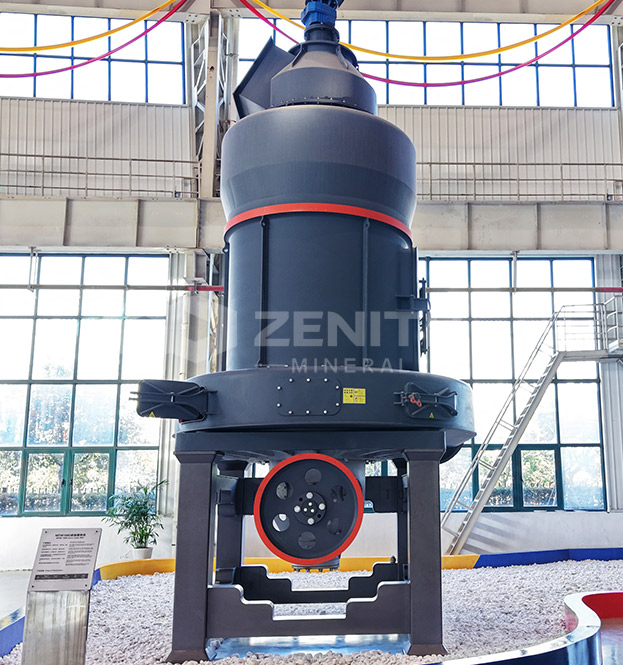

MTW European Trapezium Mill

MTW series trapezium mills are a perfect grinding machine, which could produce 80-400mesh fine powder with large capacity. The biggest model could give 50tph capacity with less powder consumption.
Due to its stable performance, MTW series mills are widely used for making fine powder, which are mostly used for agriculture, chemical, paint, wall putty, steel plant, water treatment, etc.

Capacity: 3-45T/H

Input Size: 0-50mm

Output Size: 0.038-1.6mm

Product Data Download

Less Occupied Area & Less Investment

MTW series trapezium mill has its own production system from bulk material to finished powder, with less investment in building plant and foundation.

60% Lower on Consumption than Ball Mill

MTW series trapezium mill has an energy consumption of more than 60% lower than that of the same grade of ball mill under ideal working conditions.

Adjustable Output Fineness

MTW series trapezium mill adopts modular impeller adjustment device, which can produce products with different fineness only by changing impellers.

Higher Induced Air Efficiency

MTW series trapezium mill adopts high efficiency impeller fan, which improves the efficiency of air induction from 62% to 85%.

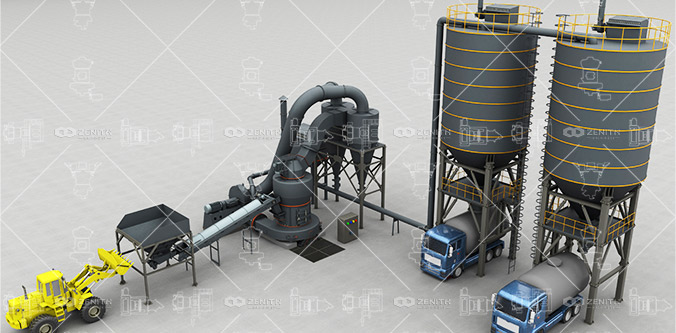

Working Principle

After crushing, qualified materials are sent to the main machine crushing chamber by the variable frequency belt feeder for crushing. The crushed materials are sent to the powder selector by the fan airflow for classification. Qualified fine powder is separated into finished products in the cyclone powder collector, and coarse powder falls back and is re-ground. The system operates under positive and negative pressure conditions, and the equipment is equipped with a pulse dust collector, which meets national environmental protection standards.

Online Chat

Inquiry

FAQ

What is the fineness of the finished product produced by the MTW European version?

The fineness of the finished product produced by the MTW European version can be adjusted arbitrarily between 0.038 mm (325 mesh) and 1.6 mm. Precise control of the fineness is achieved through a variable-frequency powder separator.
What is the production capacity range of the MTW European version mill?

The production capacity of MTW European models ranges from 3 T/H to 45 T/H. Different models have varying capacities, making them suitable for small and medium-sized production lines.
Can the MTW European version handle materials with high moisture content?

Yes, the MTW European version can be equipped with a hot air drying system for simultaneous drying of the material. It can handle materials with a moisture content of up to 6%, meeting the grinding requirements of most materials.
What is the function of the blade in the MTW European version grinder?

The shovel is used to lift materials and feed them between the grinding rollers and rings for grinding. It’s one of the key wear-prone components, and its degree of wear directly affects the equipment’s productivity.
What’s the level of automation in the MTW European version?

The MTW European version grinder is equipped with a PLC-based automated control system. It enables one-key start/stop functionality, real-time monitoring of operating parameters, and automatic fault alerts. The operation is simple, requiring no specialized personnel to operate it.
What are the advantages of the curved air duct design in the MTW European version?

The arc-shaped air duct design significantly reduces air resistance and improves air flow efficiency. It also prevents material accumulation within the ducts, effectively reducing the likelihood of equipment blockages and enhancing operational stability.
