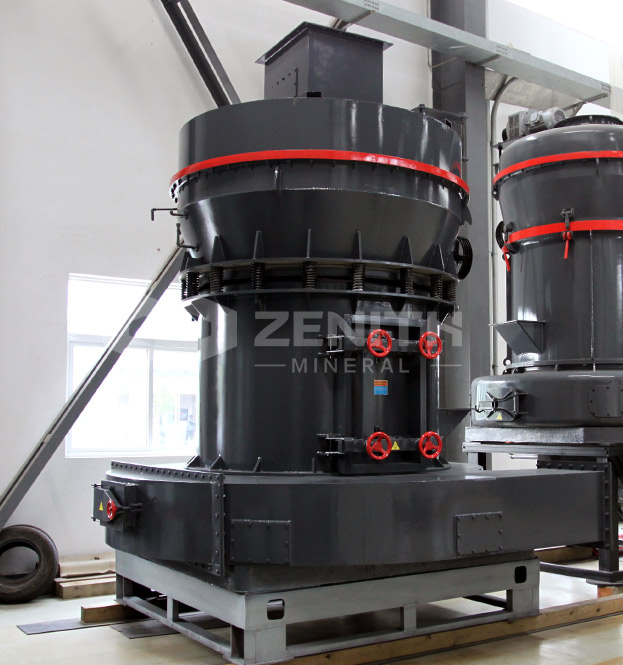

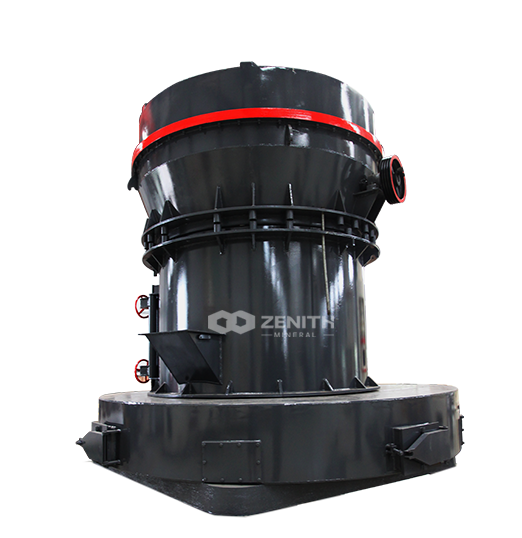

MTM series trapezium mills are a stable grinding equipment, which are generated and practicle used with more 30years for producing 80-325mesh mineral powder. Features less investment and adaptability to materials, MTM mills are very popular with customers.
Capacity: 3-22 T/H
Input Size: 0-35mm
Output Size: 0.038-1.6mm
Product Data Download
MTM series trapezium mills has its own production system from bulk material to finished powder, with less investment in building plant and foundation.
MTM series trapezium mills has an energy consumption of more than 60% lower than that of the same grade of ball mill under ideal working conditions.
MTM series trapezium mills adopts modular impeller adjustment device, which can produce products with different fineness only by changing impellers.
MTM series trapezium mills adopts high efficiency impeller fan, which improves the efficiency of air induction from 62% to 85%.
The materials that meet the size are sent to the main grinding chamber for grinding by the electromagnetic vibrating feeder. After grinding, the materials are sent to the powder selector for classification by the fan, and the materials that do not meet the fineness are returned for re-grinding. The qualified materials are separated and collected by the cyclone powder collector along with the air flow through the pipeline and discharged as finished powder. The system operates at positive and negative pressures and meets environmental protection standards.
Negative-pressure operation with dust collection captures dust and controls leakage; stable running with conventional noise meets environmental requirements.
Commonly loose anchors, uneven feeding, uneven roller/ring wear or shovel wear; checking these usually locates the cause.
These low-hardness materials suit MTM well, with stable output and low wear, a typical application.
With optimized structure and direct transmission, the system is economical in energy among similar equipment, giving low long-term power use, suiting cost-conscious projects.
MTM uses a transmission to drive the shaft with roller assemblies revolving and rolling on the ring; the classic structure is stable, easily maintained and fault points are controlled.
Yes. MTM is often used for fine grinding of ores before beneficiation, reducing minerals like copper, lead and zinc to suitable fineness to improve subsequent separation.
