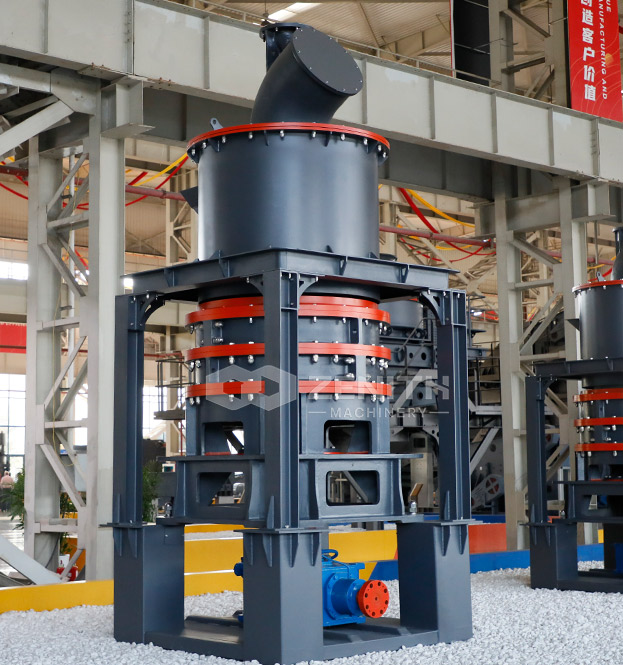

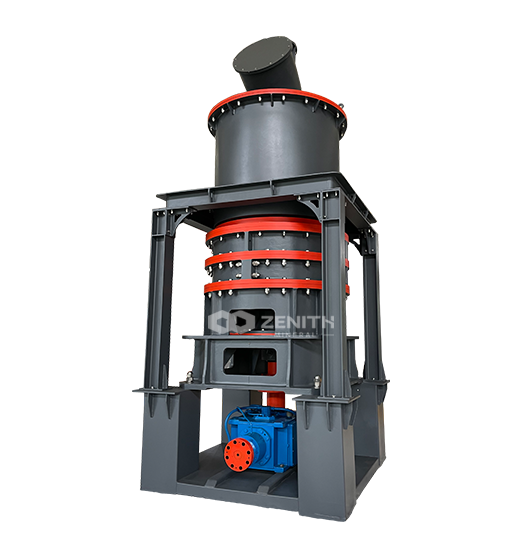

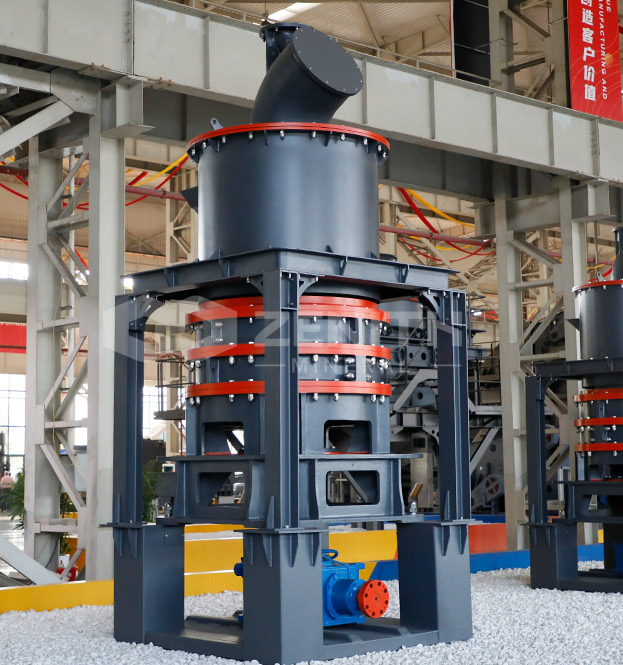

XZM Ultrafine Grinding Mill

XZM series ultrafine mill are a ideal milling machine with advanced technology, which could produce 325mesh to 3000mesh with single classification. Its inner structure is relatively simple, which compromises the less downtime and easy for maintenance. The classifier is equipped with VFD to easy adjust the rotary speed of classification rotor, which makes convenient to get the requested powder size by setting on electric control panel. The produced mineral powders are widely used in paint, PVC, plastic, paper, chemical industries.

Capacity: 0.5-25 T/H

Input Size: ≤20mm

Output Size: 325-2500mesh

Product Data Download

Arbitrary Adjustment of Fineness

The product fineness of XZM Ultrafine Grinding Mill can be adjusted arbitrarily between 325 meshes and 2500 meshes, and can reach D97 < 5 micron at one time.

High Efficiency, Low Energy Consumption

To produce same powder under the same power, the XZM is 40% higher on efficiency and 70% lower on energy consumption than air-flow mill and stirring mill.

Safe Structural Design

There are no rolling bearings and screw in the grinding chamber. There is no problem of bearing and seal vulnerability and the hidden danger of screw loosening destroying.

Environmentally Friendly

XZM Ultrafine Grinding Mill adopts high-efficiency pulse dust collector and muffler. It has no dust pollution and noise pollution and fully meets the national environmental protection standards.

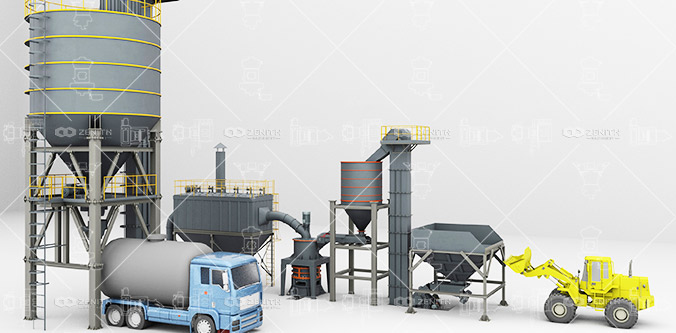

Working Principle

Crushed material is fed into the main machine, falling onto the turntable where grinding rollers crush it under centrifugal force. Material enters the classifier with airflow; unqualified particles return for re-grinding, while qualified powder is collected in the cyclone and pulse dust collector. Filtered airflow is released, and the system operates under negative pressure.

Online Chat

Inquiry

FAQ

What to do about the loud noise during the operation of the grinder?

Check whether the grinding rolls and grinding discs are worn out, and ensure that the lubrication system is functioning properly.
Is installation and debugging provided?

Yes, our company provides comprehensive technical support, including installation guidance, debugging, and operation training, to ensure the stable operation of the equipment.
Does the equipment price include installation and debugging?

Generally, the basic quote includes only the cost of the hardware. Services such as transportation, installation, commissioning, and training need to be negotiated separately based on the project location and specific requirements. We’ll provide a comprehensive solution for you.
What are the main factors to consider when selecting a calcite grinding machine?

The main considerations include the properties of the raw materials, the desired fineness, production requirements, energy consumption, equipment investment, and operating costs.
How long is the equipment’s lifespan?

Under normal usage, the main unit can last 10-15 years without issues. Wear-resistant parts should be replaced every 1-2 years, depending on the level of usage.
What should be considered most carefully when choosing equipment?

Fineness and output matching, quality of wear-resistant parts, and manufacturer’s after-sales service.
