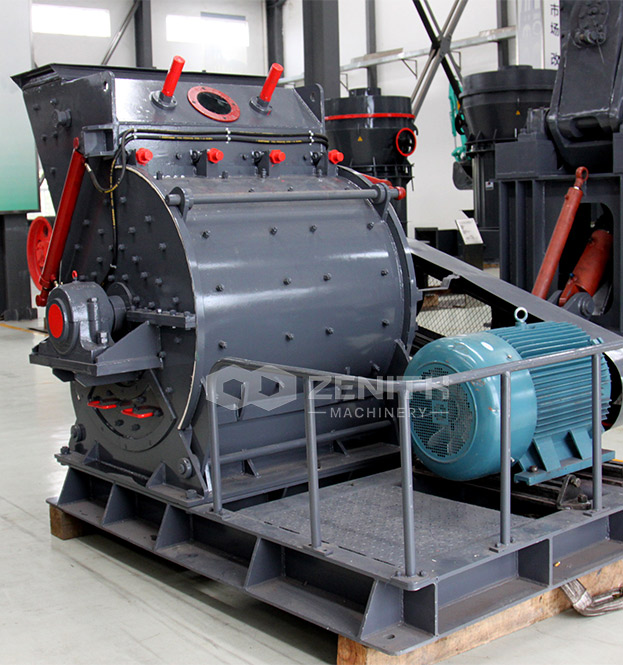

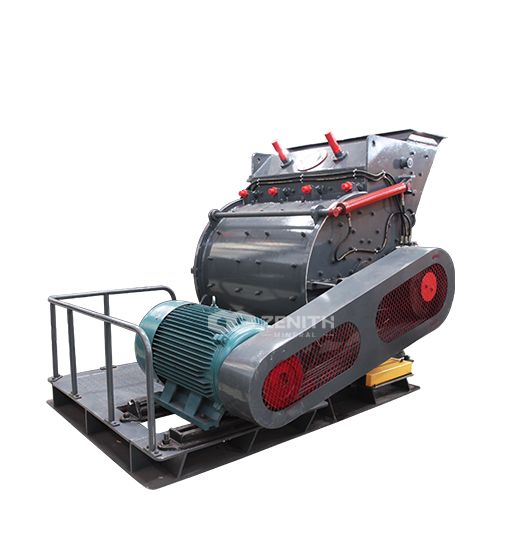

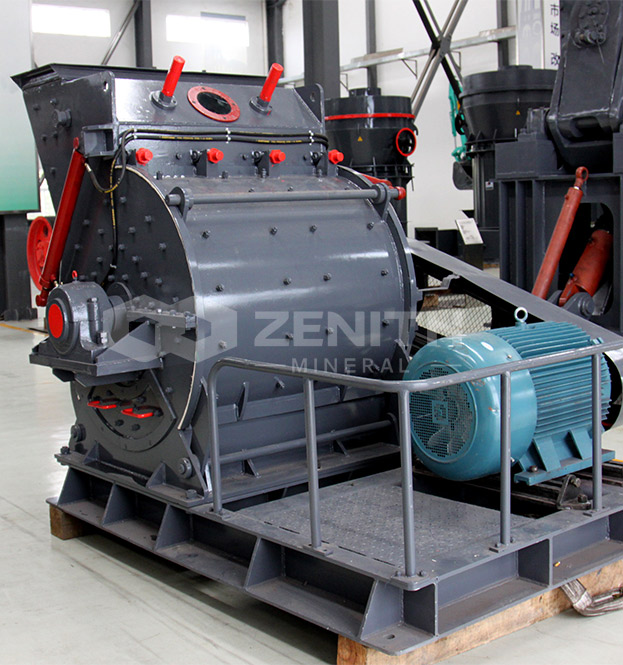

Hammer Mill

HM series hammer mills are a new generation of grinding equipment for producing 0-3mm coarse powder. This mill adopts a partial working priciple of crushers and makes up the disadvantage of uneven particle size of finished products in traditional coarse powder mills. Now, it has become the core equipment for production of coarse powder particles, which are widely used in dry mortar, animal feed, agriculture, construction material, etc.

Capacity: 3-50 T/H

Input Size: 0-50mm

Output Size: 0-3mm

Product Data Download

High grinding ratio

Hammer Mill has the advantages of good grinding performance. It has higher output and grinding ratio.

Stable performance

Hammer Mill has optimized cavity design and unique operating principle. The performance of this mill is excellent and stable.

Low investment costs

Hammer Mill has high cost-effective, simple working process. It takes only a little space, saving costs for foundation base.

Long service life

The casing with high manganese steel lining has higher abrasion resistance and longer service life.

Working Principle

The main machine drives the main shaft to rotate through the motor and V-belt, which makes the rotor rotate. The rotor is equipped with fixed hammers. After the large pieces of material enter the crushing chamber from the feed port, they are crushed by the high-speed rotating hammers. The qualified materials are discharged from the bottom grate bars, and the unqualified materials remain in the crushing chamber and are discharged as qualified products after repeated action of the hammers and liner plates.
