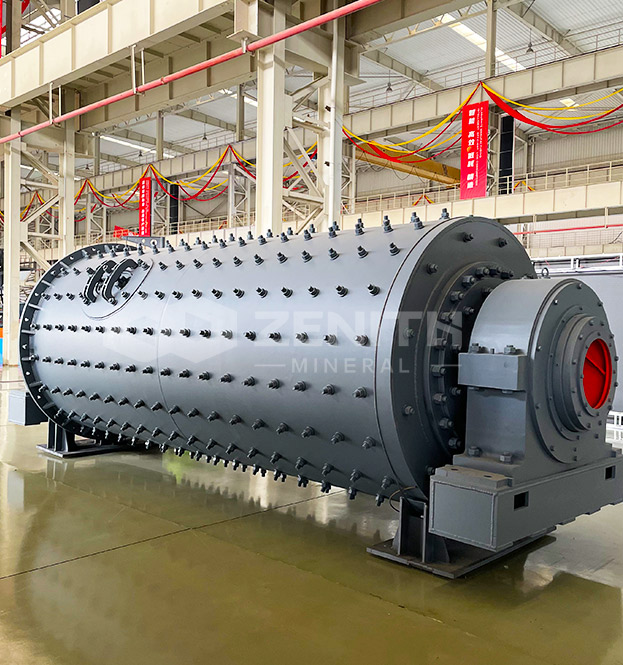

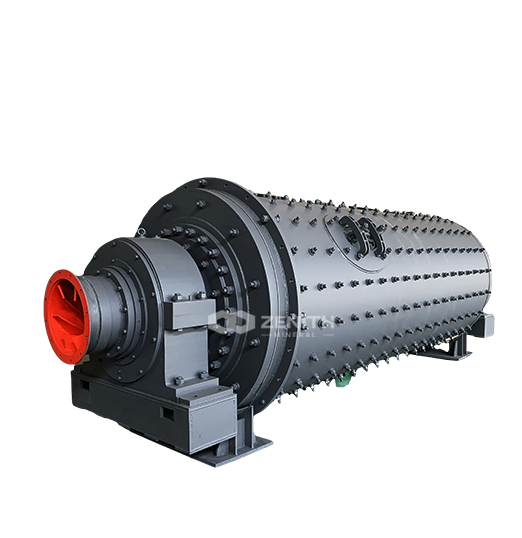

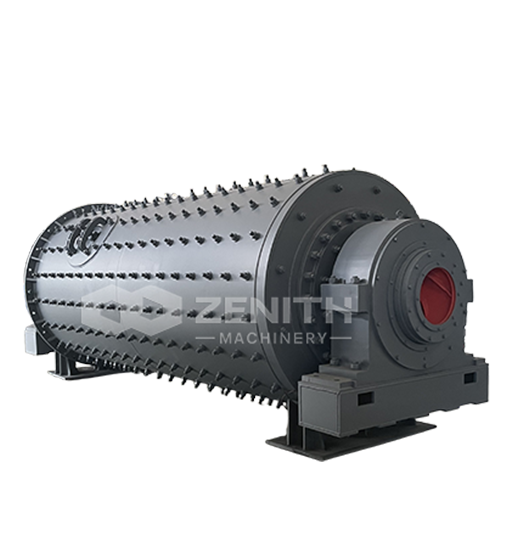

Mining Ball Mill

Mining ball mill is an efficient, energy-saving, and durable mining equipment widely used in multiple industries. Mining ball mills are mainly used for grinding materials in industries such as refractory materials, cement, fertilizers, glass, mineral processing, ceramics, and chemical engineering. In the preparation of aerated concrete raw materials, ball mill is also one of the most important equipment. It is suitable for grinding materials such as lime, gypsum, sand, slag, etc. These materials can only be fully mixed after being ground and reaching the required fineness, so as to achieve the strength of the product.

Capacity: 0.5-300 T/H

Input Size: 0-20mm

Output Size: 74-800μm

Product Data Download

Efficient grinding ability

The ball mill has efficient grinding ability, providing high-quality raw materials for processing technology.

Significant energy-saving effect

Modern ball mills adopt advanced transmission technology and energy-saving design, which can significantly reduce energy consumption.

Wide applicability

Ball mills are suitable for various types of ores and mineral processing processes.

Smooth and reliable operation

The structure of the ball mill is simple, easy to operate and maintain, and the equipment runs smoothly and reliably.

Working Principle

The mining ball mill is to use gravity and centrifugal force to throw the grinding media against the inner wall of the cylinder, thereby impacting and grinding the material. The material is continuously ground within the cylinder until the desired fineness is achieved.

Online Chat

Inquiry

FAQ

What are the types of drive systems for ball mills?

The drive systems of ball mills mainly include two types: edge drive and central drive. Edge drive uses gear transmission, which is less costly. Central drive utilizes reducers for transmission, resulting in higher efficiency and more stable operation.
What are the functions of the control system for a ball mill?

The automated control system enables one-click start/stop of equipment, real-time monitoring of operating parameters, automatic load adjustment, automatic fault detection and recording, as well as statistical analysis of production data. It’s easy to operate and highly reliable.
How is the rotational speed of the drum in a ball mill determined?

The rotational speed of the mill cylinder depends on factors such as the mill’s diameter, ball filling rate, and material properties. Typically, 65%-85% of the critical speed is used. Too high or too low a speed can affect the grinding efficiency.
How effective is a ball mill in grinding cement clinker?

The ball mill is a traditional and essential equipment for grinding cement clinker. It provides stable grinding results and consistent fineness of the finished product. It’s an indispensable component of cement production lines. When combined with a roller press, it forms a combined grinding system that helps reduce energy consumption.
How is the proportion of steel balls in a ball mill determined?

The proportion of steel balls must be determined based on factors such as the hardness of the material, feed particle size, desired fineness, and drum rotation speed. Steel balls of different diameters are typically used in combination. Larger balls are used for impact crushing, while smaller balls are used for grinding. The optimal ratio can be determined through experimentation.
What is the production capacity range of ball mills?

The production capacity of ball mills varies widely, ranging from 0.65 T/H to hundreds of T/H. Different models and specifications correspond to different capacities, enabling them to meet the needs of various applications, from small laboratories to large-scale mines and cement plants.
